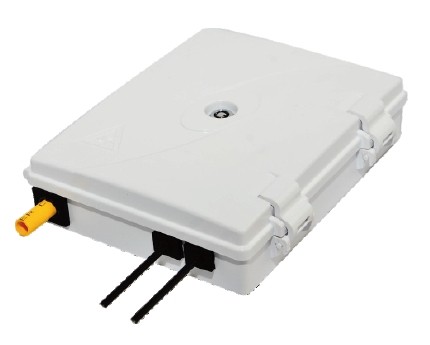

FTTx Fiber Optic Terminal Box
1. Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and it provides solid protection and management for the FTTx network building.
2. Features:
- Total enclosed structure; be in nice shape.
- PC+ABS material; wet-proof, water-proof, dust-proof, anti-aging
- The protection grade is IP55.
- Cable, pigtails, patch cords are running through own path without disturbing each other.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Wall-mounted or poled-mounted; suitable for both indoor and outdoor.
3. Specifications:
Model |
Description |
Size(Pic.1) |
Max Capacity |
Installation Size(Pic.2) |
||
A*B*C(mm) |
SC |
LC |
PLC |
A (mm) |
||
FTT-H202 |
FTTH Box |
150*120*37 |
2 |
4 |
|
60 |
