Optical Test Instrument

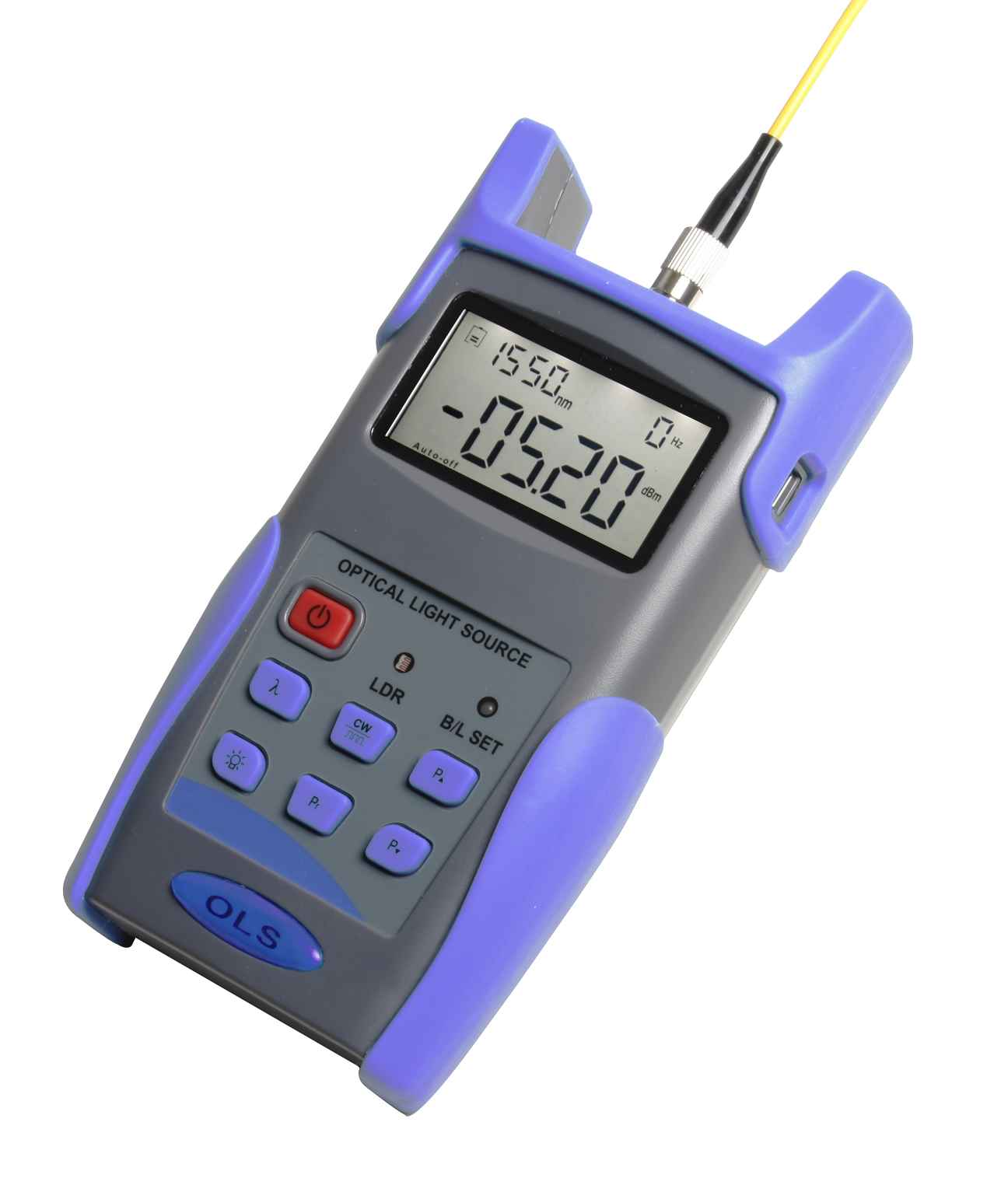

KSUN3116 Optical Light Source
is Joinwit newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with KSUN3216 handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. The KSUN3116 provides 1 to 4 wavelengths and output power can be adjustable on customer requests. Also the KSUN3116 features good appearance, good touch feeling and considerate humanity design.
Features
•Wave ID information can be transmitted when used with THE MATCHED OPTICAL POWER METER.
•Tone generation, 270HZ,330HZ,1KHZ,2KHZ
•Output power can be adjustable
•Output power value is shown on LCD display
•Intelligent backlight control (light intensity can be adjusted properly
according to ambient light, which greatly reduced power consumption)
•AA alkaline and AC adapter for power supply
•Low battery indication
Model |
Optical Light Source |
|
Operating wavelength（nm） |
1310/1550 (others specify on requests） |
|
Applicable fiber |
SM ,MM |
|
Laser type |
FP-LD(others specify on requests) |
|
Maximum Output Power（dBm） |
-5（can be adjustable, others specify） |
|
Adjustable step size（dBm） |
＜0.5 (adjustable between -5~-12dBm) |
|
Stability(dB，15min，20℃) |
±0.1 |
|
Stability(dB，30min，20℃) |
±0.05 |
|
Modulation（Hz） |
CW， 270，330，1K，2K |
|
Fiber Port |
FC/PC or FC,SC,ST interchangeable |
|
Alkaline Battery |
3*AA，1.5V |
|
Power Supply Adaptor(V) |
8.4 |
|
Battery Operating time(h) |
45 |
|
Operation Temperature(℃) |
-10～+60 |
|
Storage Temperature(℃) |
-25～+70 |
|
Outline size（mm）/weight |
175*90*44.5/255g |
Standard Packages
| MODEL |
INCLUDES |
|
All KSUN3116 Models |
KSUN3116 Optical Light Source, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case. |
