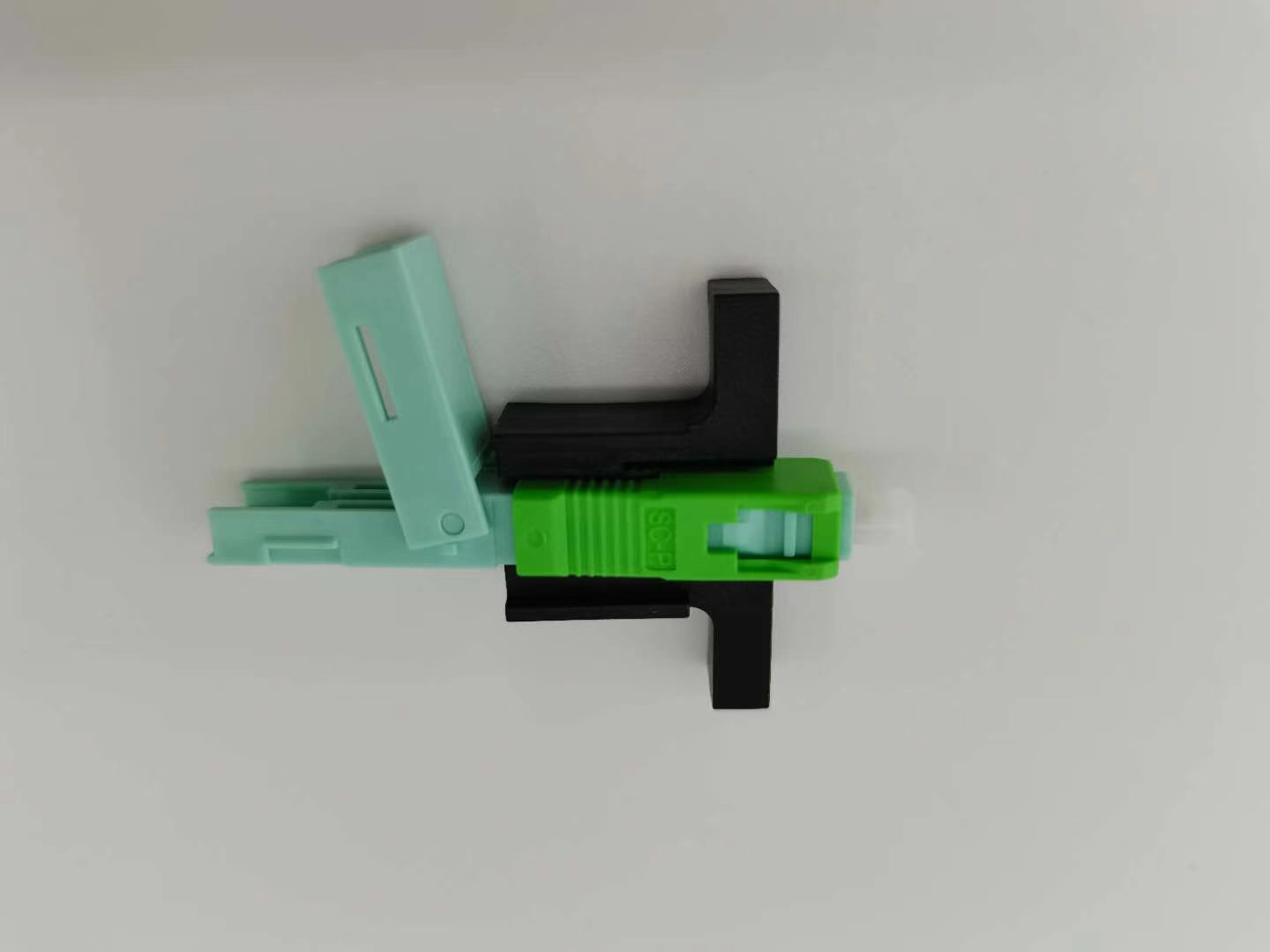

SC Optical Fast Connector
Applications
• Patch panels
• Distribution frames
• Maintenance or emergency restoration of fiber networks
• FTTH Outlets
•Connection at the desk for LAN environments
•Fiber Optic Patch Cord & Pigtail
•Telecommunication Devices
•Data Communications Networks
•Optical Fiber LAN and Access Network
• Industry and Military Applications
Features:
•Factory-installed fiber stub.
•Easily installed, Quick and easy fiber termination in the field.
•Low insertion loss and high return loss
•Stable indicators, high reliability during the low/high temperature
•Strong tension, Low cost
•Can be made on-site without splicing connectors.
•Eliminates cable excess length and pigtail splice storage.
Specifications:
Technical specification
|
Item |
Parameter |
|
|
Cable Scope |
3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable |
|
|
Size: |
51*9*7.55mm |
|
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
|
Coating Diameter |
250μm |
|
|
Mode |
SM |
|
|
Operation Time |
about 15s（exclude fiber presetting) |
|
|
Insertion Loss |
≤ 0.3dB（1310nm & 1550nm) |
|
|
Return Loss |
≤ -50dB for UPC, ≤ 55dB for APC |
|
|
Success Rate |
>98% |
|
|
Reusable Times |
>10 times |
|
|
Tighten Strength of Naked Fiber |
>5 N |
|
|
Tensile Strength |
>50 N |
|
|
Temperature |
-40 ~ +85 C |
|
|
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
|
|
Mechanical Durability（500 times) |
IL ≤ 0.3dB |
|
|
Drop Test（4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
|
