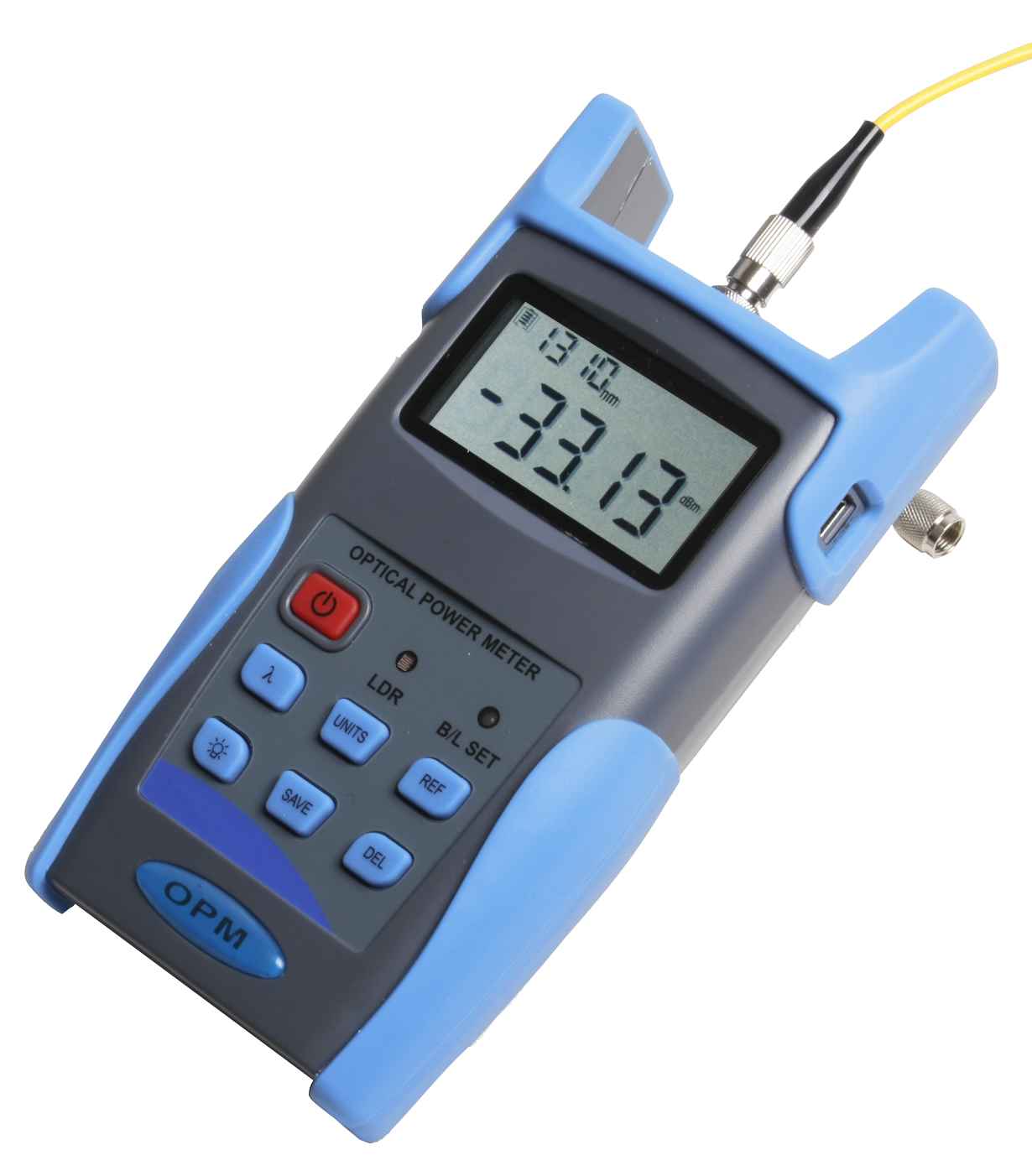

KSUN3216 Handheld Optical Power Meter
is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data savage via USB port.
Combined with ITS MATCHED handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Features
• Wave ID—Auto wavelength identification & switching
• Frequency ID ---Auto frequency identification
• 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
• Intelligent backlight
• 1000 records storage or download via USB cable
• USB communication port for saved testing records download
• Reference power level can be set up and stored
• User self-calibrating function
• Auto-off function
• Up to 200hrs battery life
Specifications
|
Model |
A |
C |
|
Calibration Wavelength（nm） |
850/1300/1310/1490/1550/1625 |
|
|
Detector type |
InGaAs |
|
|
Measurement Range（dBm） |
-70～+6 |
-50～+26 |
|
Uncertainty (dB) |
±0.15（3.5%） |
|
|
linearity (dB) |
±0.02 |
|
|
Display resolution(dB) |
0.01 |
|
|
Frequency ID（Hz） |
270，330，1K，2K |
|
|
Wave ID（nm） |
850,1300, 1310，1490，1550，1625 |
|
|
Date Storage Capacity |
1000 |
|
|
Communication Port |
USB |
|
|
Standard Connector |
FC /2.5mm universal |
|
|
Optional Optical Connector |
FC/SC/ST Interchangeable/2.5mm universal |
|
|
Optional Optical Connector |
LC/FC/SC/ST Interchangeable |
|
|
Alkaline battery |
3*AA，1.5V |
|
|
Power Adapter(V) |
8.4 |
|
|
Battery Operating time (h) |
200 without backlight |
|
|
Operation Temperature(℃) |
-10～+60 |
|
|
Storage Temperature(℃) |
-25～+70 |
|
|
Dimension(mm) |
175*90*44.5 |
|
|
Weight(g) |
231 |
|
Remark: Battery operating time is based on the condition of the power off the backlight. If power on the backlight continuously, the operation time will be shorter.
Standard Packages
|
MODEL |
INCLUDES |
|
All KSUN3216 Models |
KSUN3216 Optical Power Meter, 3pcs 1.5V Batteries, Power Adapter, User Manual, USB cable, CD, Cotton Stick and Soft Carrying Case |
