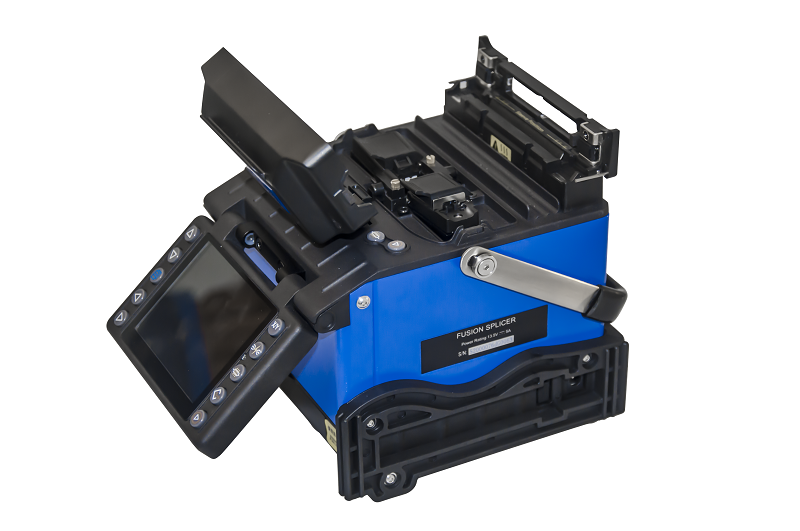

Applicable fibers

SM  MM  DS  NZDS

Fiber diameter

Cladding diameter:80-150μm; Coating diameter:100-1000μm

Fiber count

Single

Fiber cleaved length

8-16mm (Coating diameter:250μm)

Actual average splice loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Typical splicing time

Typical 9 sec (standard SM fiber)

Return loss

＞60dB

Splicing mode

Auto Calibrate Normal Special

Fiber aligning method

Meticulous、Core、Clad、Manual

Splicing program

53 (factory mode), 100(user mode)

Tube heating program

9 (factory mode), 40(user mode)

Tube typical heating time

Typical 16～25 sec

Protection sleeve length

60mm, 40mm

Storage of splice result

10000 results,  24parameter per result , 100 set of images

Fiber image magnification

120X (X or Y view)，60X  (X and Y view)

Battery capacity

Typical 300 cycles  (splice/tube heat with inner Li-battery )

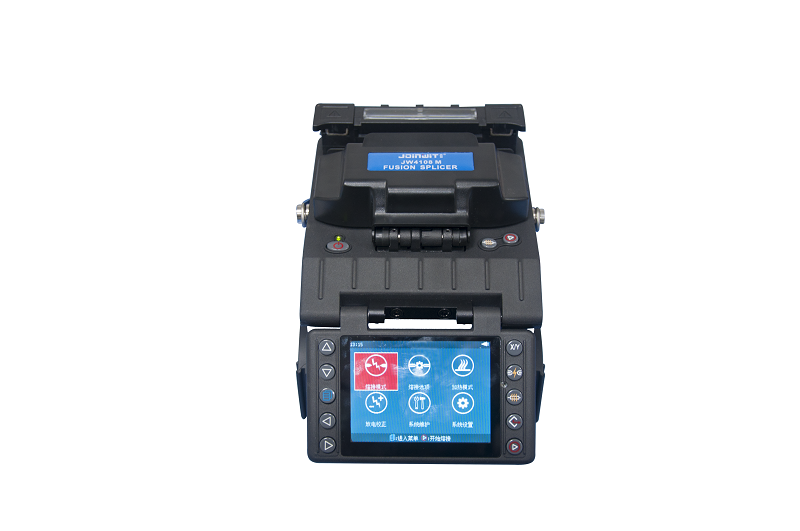

Monitor

3.5 inch color LCD monitor

Tension test

2N

Electrode life

2500

Terminal

USB

Power supply

AC 100-240V with AC adapter DC13.5V  Inner Li-battery (5200mAH)

Operating condition

0-5000m above sea level, -10-50℃  Max wind velocity of 15m/s

Dimension

122mm(L)×148mm(W)×130mm(H)

Weight

1.4Kg excluding battery   1.7Kg including battery
