SC Optical Fast Connector

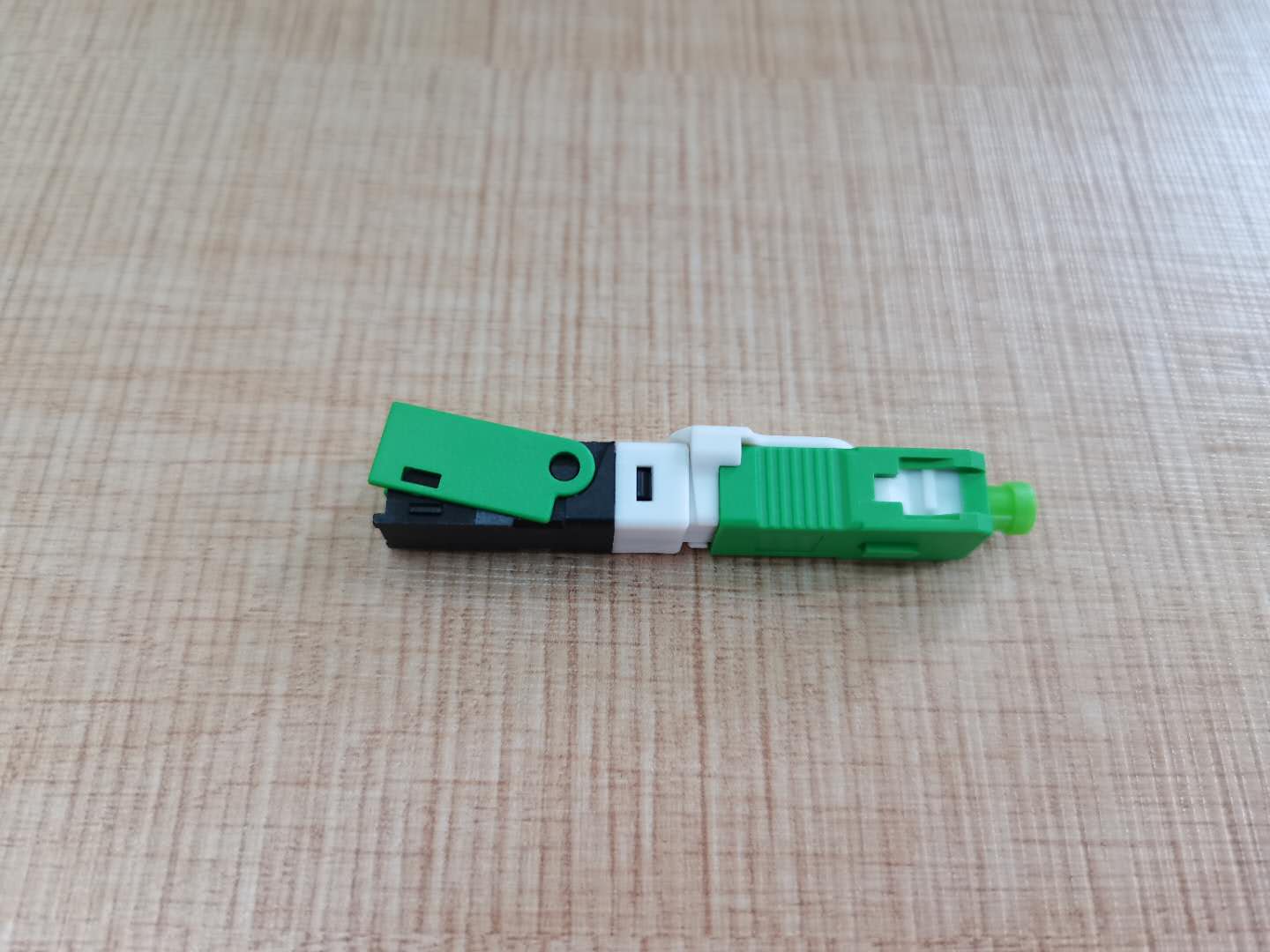

FTTH SC/APC Fast Connector

KSUN001



Applications
• Patch panels
• Distribution frames
• Maintenance or emergency restoration of fiber networks
• FTTH Outlets
•Connection at the desk for LAN environments
•Fiber Optic Patch Cord & Pigtail
•Telecommunication Devices
•Data Communications Networks
•Optical Fiber LAN and Access Network
• Industry and Military Applications
Features:
• Factory-installed fiber stub.
• No epoxy and polishing required, No special tools needed when installed.
•Allows up to three re-termination result.
•Easily installed, Quick and easy fiber termination in the field.
•Cost effective, Warranty: One year.
•Fast connecting and repeat, No special tools needed when installed.
•Can be made on-site without splicing connectors.
•Eliminates cable excess length and pigtail splice storage.
•Can be intalled and maked repeatedly thus avoiding loss.



Specifications:

Technical specification

Item

Parameter

Cable Scope

3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable

Size:

51*9*7.55mm

Fiber Diameter

125μm ( 652 & 657 )

Coating Diameter

250μm

Mode

SM

Operation Time

about 15sexclude fiber presetting)

Insertion Loss

≤ 0.3dB1310nm & 1550nm)

Return Loss

≤ -50dB for UPC, ≤ 55dB for APC

Success Rate

>98%

Reusable Times

>10 times

Tighten Strength of Naked Fiber

>5 N

Tensile Strength

>50 N

Temperature

-40 ~ +85 C

On-line Tensile Strength Test (20 N)

 IL ≤ 0.3dB

Mechanical Durability500 times)

 IL ≤ 0.3dB

Drop Test4m concrete floor, once each direction, three times total)

 IL ≤ 0.3dB
