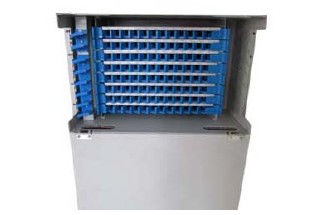

Optical Distribution Frame
Features
• The Case Body is Made by Cold Rolled Steel Sheet with Electrostatic Spraying • Welding & Distribution Module Integration(ODF Unit) • Can be Install with Adaptors FC,SC,ST,LC… • 9” Standard Structure, Rack Mounting
Specifications
|
Type |
Net Size (mm) |
Core Capacity |
Cable Port (max) |
Max. Diameter of Cable (mm) |
Core Capacity Tray |
Weight (kg) |
|
FOD-U-C24 |
483x300x89 |
24 |
8 |
Ф20 |
12 |
5.4 |
|
FOD-U-C48 |
483x300x135 |
48 |
8 |
Ф20 |
12 |
7.8 |
|
FOD-U-C72 |
483x300x180 |
72 |
12 |
Ф20 |
12 |
10.6 |
|
FOD-U-C96 |
483x300-270 |
96 |
12 |
Ф20 |
12 |
12.2 |
Packing Information
|
Type |
Net Size (mm) |
Inner Carton Dimension /Weight |
Outer Carton Dimension /Weight |
No./Carton (pcs) |
|
FOD-U-C24 |
483x300x89 |
582x360x126mm/5.6kg |
585x365x630mm/31kg |
5 |
|
FOD-U-C48 |
483x300x135 |
582x360x171mm/8.1kg |
585x365x685mm/31kg |
4 |
|
FOD-U-C72 |
483x300x180 |
582x360x216mm/11kg |
585x365x650mm/30.5kg |
3 |
|
FOD-U-C96 |
483x300-270 |
582x360x306mm/12.6kg |
585x365x615mm/26.5kg |
2 |
