Optical Distribution Frame
Features
• FOD-DRG-Series Fiber Optic Distribution Frame with 19 "standard installation interface, the surface electrostatic spray, beautiful and generous.
• Using two-directional rotary optical splicing tray, Independent splicing tray, Clear function, High security.
• Rear flip-type splicing unit, concentrated fiber splicing
• Enough Fiber cable Storage Space, more convenient installation and maintenance
• Two cable entrances on both sides of the rear of the box
• Cassette installation type for SC,FC adaptor
• Suitable for the termination, distribution, adjustment of all kinds of cable
• Suitable for ribbon and bundle cable
• Clear and complete reference
Specification
|
Type |
Net size (L x W x H) (mm) |
Capacity (Cores) |
Remark |
|

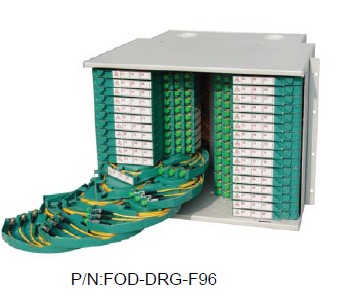

P/N:FOD-DRG-F96 |
480×395×352(8U) |
96 |
Open from both sides, 3 fiber rotary splice tray. |
|
P/N:FOD-DRG-F72 |
480×395×310(7U) |
72 |
Open from both sides, 3 fiber rotary splice tray. |
|
P/N:FOD-DRG-F48H |
480×395×310(7U) |
48 |
Open from both sides, 2 fiber rotary splice tray. |
|
P/N:FOD-DRG-F48 |
480×395×220(5U) |
48 |
Open from both sides, 3 fiber rotary splice tray. |
|
P/N:FOD-DRG-F36 |
480×395×220(5U) |
36 |
Open from both sides, 2 fiber rotary splice tray. |
