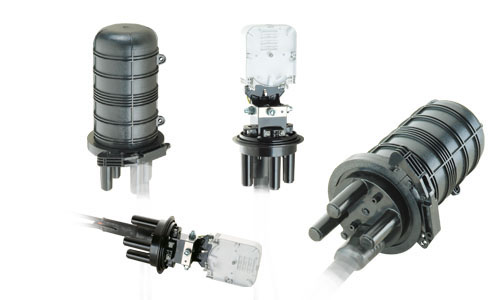

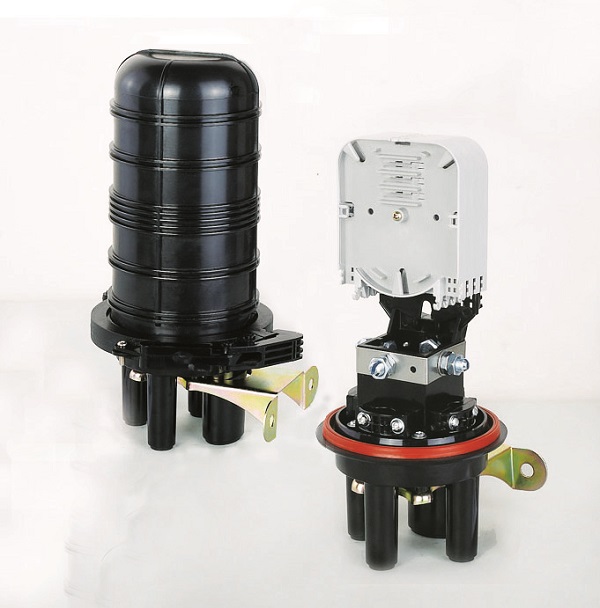

Vertical Fiber Optic Splice Closure
- Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from –40℃ to +65℃.
2. Basic structure and configuration
2.1 Dimension and capacity
Outside dimension (Height x Diameter) |
299mm×178mm |
Weight (excluding outside box) |
1550 g— 1740g |
Number of inlet/out ports |
5 pieces in general |
Diameter of fiber cable |
Φ8mm~Φ20 mm |
Capacity of FOSC |
Bunchy:6-48(cores) |
2.2 Main components
No. |
Name of components |
Quantity |
Usage |
Remarks |
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Height x Diameter |
2 |
Fiber optic splice tray (FOST) |
Max. 4 trays (bunchy) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:12(cores) |
3 |
Fiber holding tray |
1 pcs |
Holding fibers with protective coat |
|
4 |
Base |
1set |
Fixing internal and external structure |
|
5 |
Plastic hoop |
1 set |
Fixing between FOSC cover and base |
|
6 |
Seal fitting |
1 piece |
Sealing between FOSC cover and base |
|
7 |
Pressure testing valve |
1 set |
After inject air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
8 |
Earthing deriving device |
1 set |
Deriving metal parts of fiber cables in FOSC for earthing connection |
Configuration as per requirement |
2.3 Main accessories and special tools
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
3 |
Heat shrinkable fixing sleeve (single) |
|
Fixing and sealing single fiber cable |
Configuration as per requirement |
4 |
Heat shrinkable fixing sleeve (mass) |
|
Fixing and sealing mass of fiber cable |
Configuration as per requirement |
5 |
Branching clip |
|
Branching fiber cables |
Configuration as per requirement |
6 |
Earthing wire |
1 piece |
Putting through between earthing devices |
|
7 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air |
|
8 |
Labeling paper |
1 piece |
Labeling fibers |
|
9 |
Special wrench |
1 piece |
Tightening nut of reinforced core |
|
10 |
Metal hoop |
1 set |
For wall mounting and pole hugging |
|
11 |
Buffer tube |
decided by customers |
Hitched to fibers and fixed with FOST, managing buffer. |
Configuration as per requirement |
